DTRO System Diverting Plate ABS DTRO Membrane Disc 75 Bar
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | QRZ |
| Model Number: | QRZ-DTRO-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $1.50/pieces 500-4999 pieces |
| Packaging Details: | Regular packaging |
| Delivery Time: | 5-8 weeks |
| Supply Ability: | 100 units/day |
|
Detail Information |
|||
| Product Name: | DTRO Membrane Disc | Material: | ABS |
|---|---|---|---|
| Application: | DTRO Accessories | MOQ: | 500 |
| Color: | White, Blue | Shape: | Round |
| Working Pressure: | 75 Bar | Port: | Qingdao, Shanghai, Tianjin |
| High Light: | DTRO Membrane Disc 75 bar,ABS DTRO Membrane Disc,DTRO System Diverting Plate |
||
Product Description

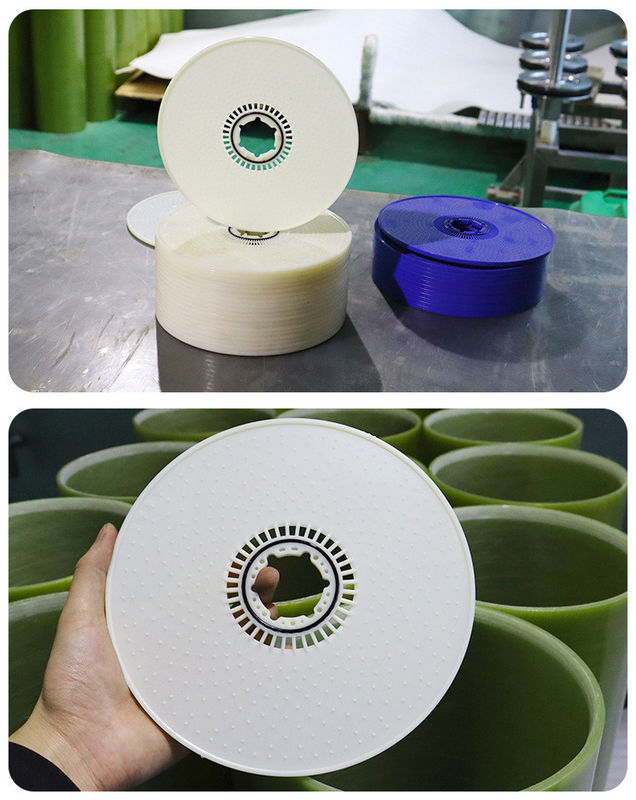

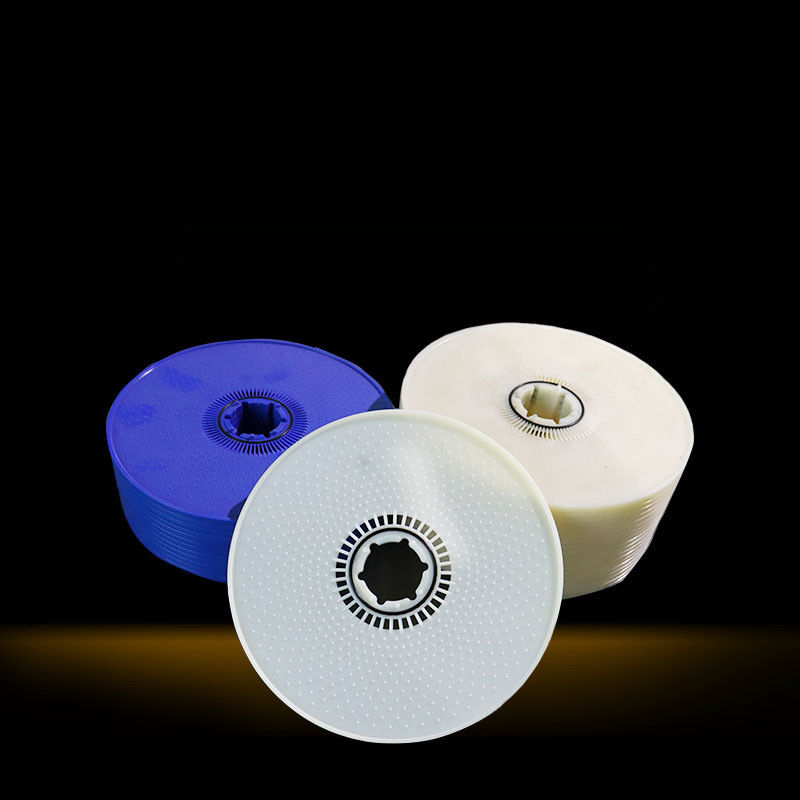

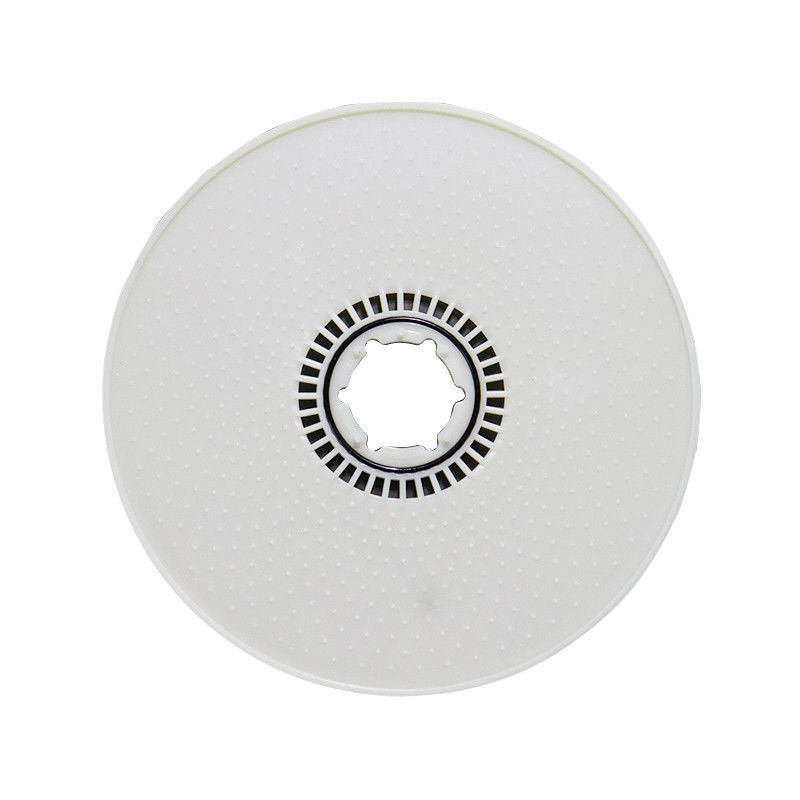

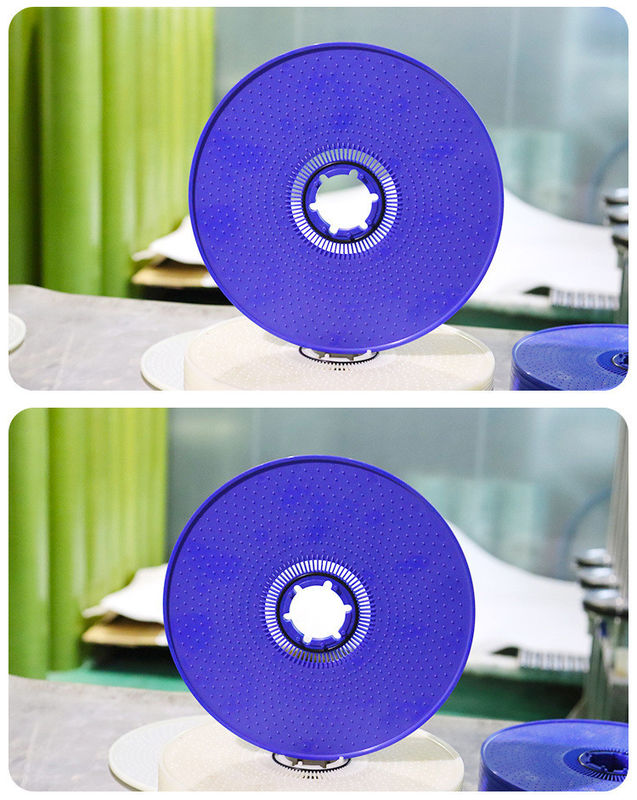

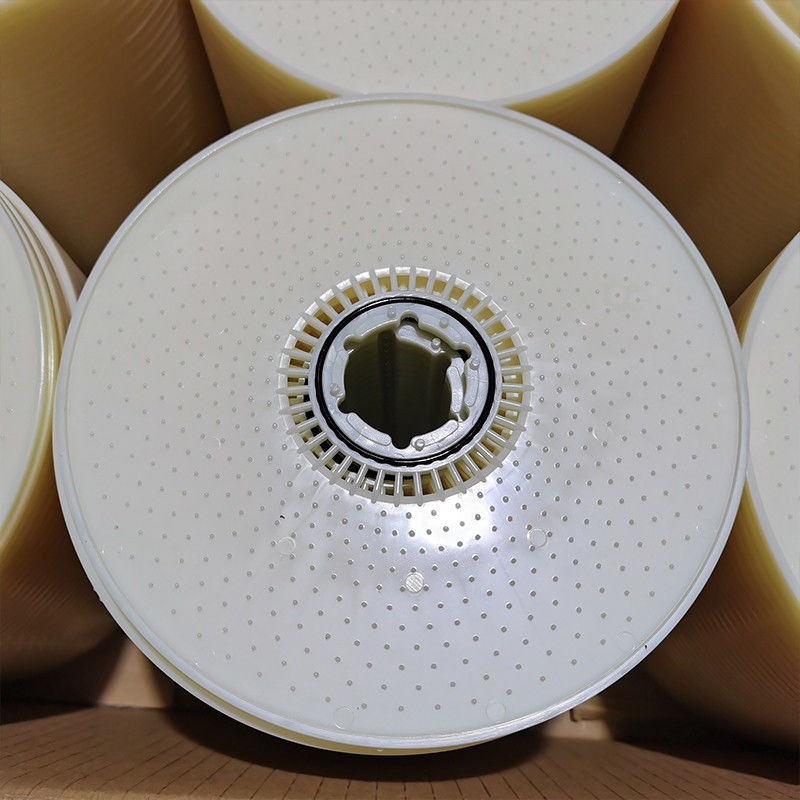

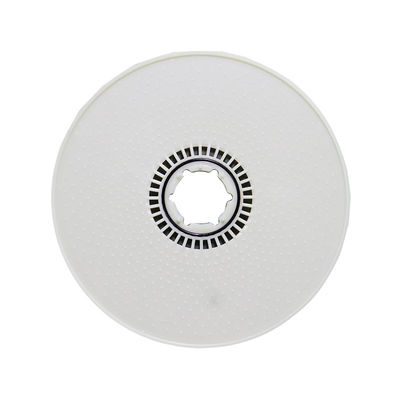

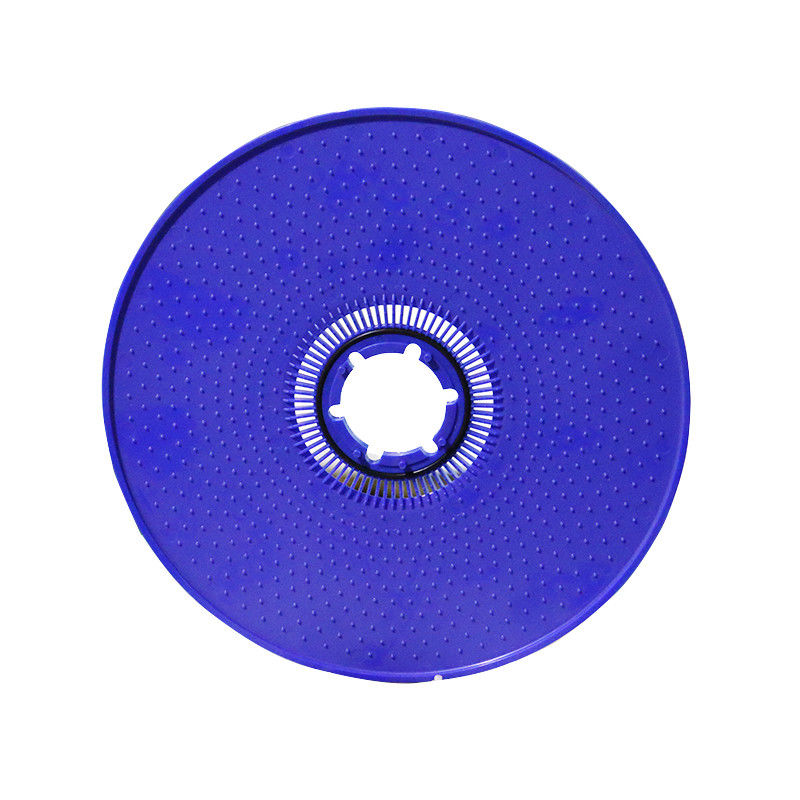

The deflector is a part of the DTRO system, and its material is ABS.
There are convex points arranged in a certain way on the surface of the guide plate to make the treatment liquid form turbulent flow, increase the transmission rate and self-cleaning function. The deflector plate clamps the diaphragm in the middle, but does not generate pressure on the diaphragm, so that the treatment liquid flows quickly across the surface of the diaphragm. The permeate flows in the middle of the diaphragm along the filamentary support to the periphery of the center rod, with the help of the deflector plate The O-shaped rubber ring is isolated from the treatment liquid and flows to different outlets.
Packaging: Plastic Bags / Paper Box /Wood Box
Shipping: Courrier, air, land, sea
|
Model |
Low Pressure Diverting Disc |
Medium Pressure Diverting Disc |
High Pressure Diverting Disc |
|
Operation Pressure |
75 bar |
120 bar |
160 bar |
|
Membrane Flux |
800~1200 liter per square meter per hour |
||
|
Disc Guide Material |
ABS |
ABS |
ABS |
|
Max. Operation Temperature |
40℃ |
40℃ |
40℃ |
|
Operation pH |
6 ~ 9 |
6 ~ 9 |
6 ~ 9 |
