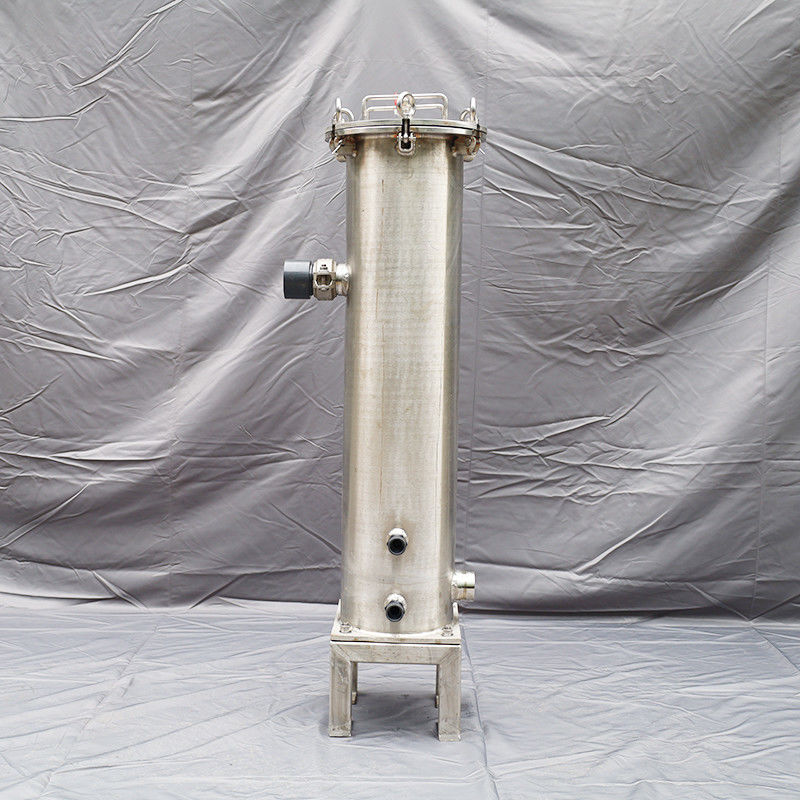

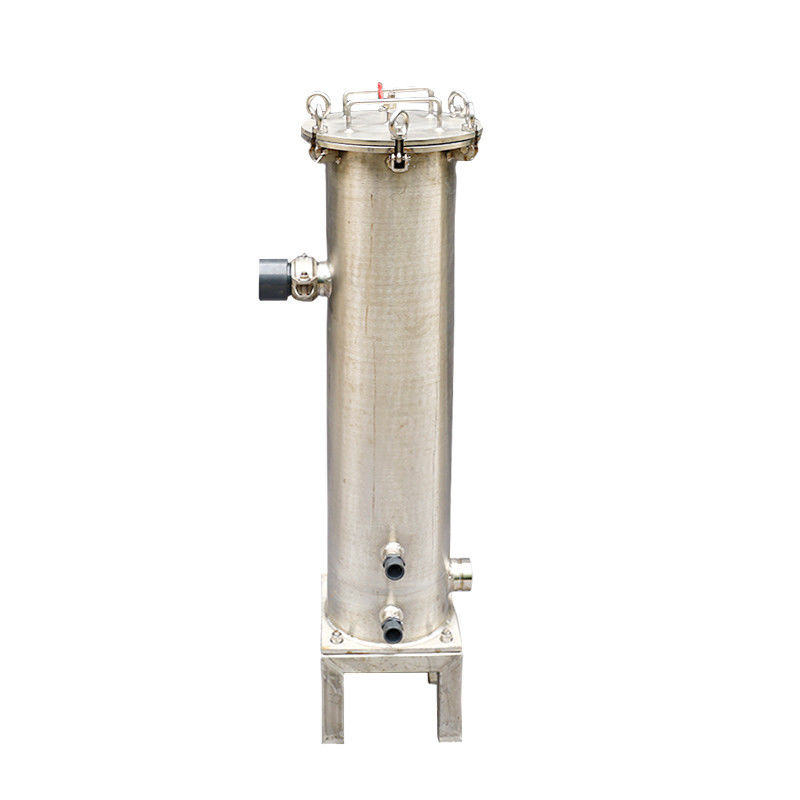

SUS304 SUS316 63mm Cartridge Precision Water Filter 1-100um
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | QRZ |
| Model Number: | QRZ-JF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $60.00 - $3,500.00/sets |
| Packaging Details: | Regular packaging |
| Delivery Time: | 5-8 weeks |
| Supply Ability: | 100 units/day |
|
Detail Information |
|||
| Product Name: | Cartridge Precision Filter | Material: | SUS304 /316 /316L |
|---|---|---|---|
| Application: | Water Pre-treatment | MOQ: | 5 |
| Color: | Silver | Working Pressusre: | 0.6 / 1.0 Mpa |
| Filtration Accuracy: | 1~100μm | Port: | Qingdao, Shanghai, Tianjin |
| High Light: | cartridge water filter 1-100um,SUS304 cartridge water filter,SUS316 water cartridge filter |
||
Product Description
Cartridge water filter is also known as type of precision filter. Typically, it is made up of stainless steel 304 /304L /316 /316L, PP filter core and other accessories. Water goes through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.
Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-100um.For the same form of filter ,it is divided into different models by their dimensions.
Packaging: Wood Box
Shipping: Land, Sea
|
ITEM |
DESCRIPTION / SPECIFICATION |
|
Name |
Cartridge precision water filter |
|
Cartridge (core) Number |
3 ~ 120 (optional) |
|
Cartridge Length |
10 /20 /30 /40 inch (optional) |
|
Cartridge Diameter |
63mm |
|
Filtration Accuracy |
1-100μm |
|

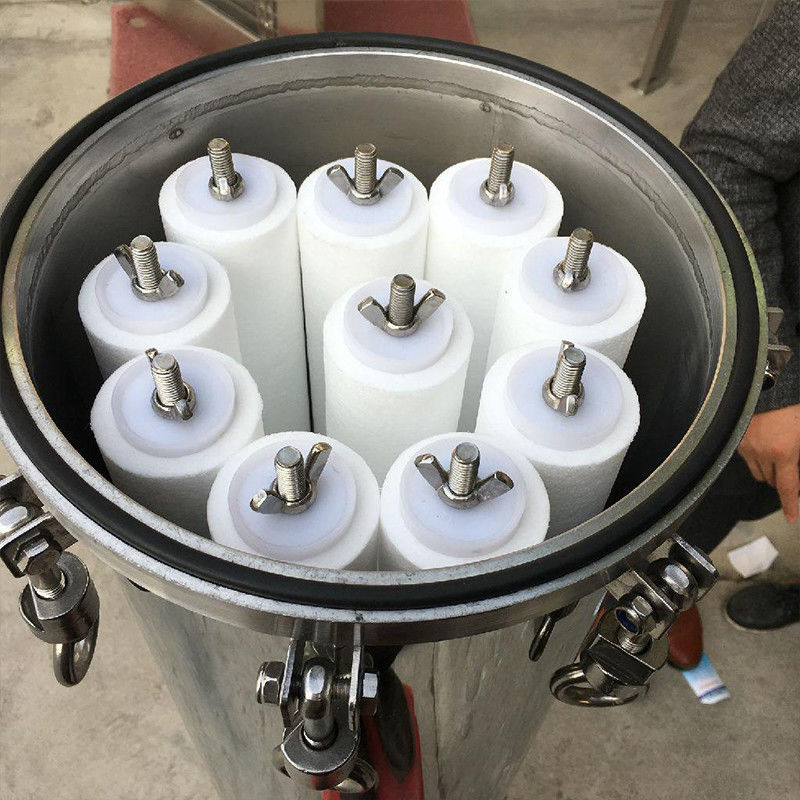

Cartridge Type & Material |
PP Meltblown, String Wound, PP Pleated (optional) |
|

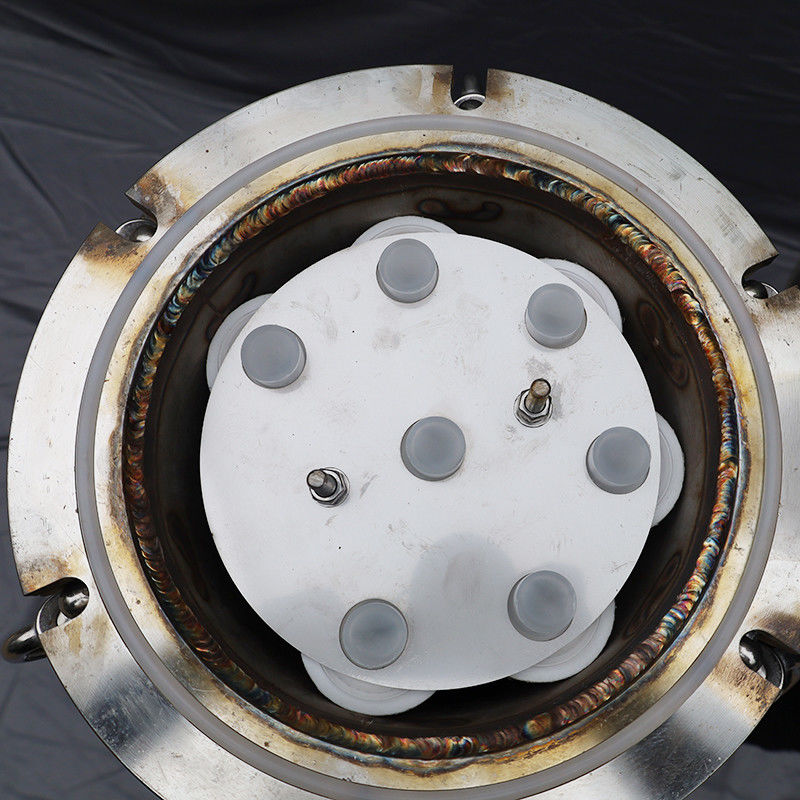

Cartridge Installation Type |
Flat press / Plug-in |
|
Housing Material |
SS304. SS304L, SS316, SS316L (optional) |
|
Seal Ring Material |
Silicon rubber /PTFE |
|
Working Pressure |
0.6Mpa /1.0Mpa |
|
Max. Working Temperature |
100℃ |
|
Surface Treatment |
Polished /Sand blast |
