4040 RO Membrane Element Reverse Osmosis Cell For Seawater Desalination Brackish Water Treatment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | QRZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $125.00/pieces 5-99 pieces |
| Packaging Details: | Regular packaging |
| Delivery Time: | 5-8 weeks |
| Supply Ability: | 100 units/day |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Other, Environmental Protection |
|---|---|---|---|
| Showroom Location: | UAE | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available | Marketing Type: | New Product 2021 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Pump, Membrane, Gauges |
| Material: | Paper Carton | Weight: | 4kg |
| Size: | 40inch X 4inch | Power: | NA |
| Warranty: | 1 Year | Productivity: | 2200 Gallon/day |
| Weight (KG): | 4 Kg | Product Name: | 4040 RO Membrane Element |
| Element Diameter: | 4 Inch | Element Length: | 40 Inch |
| Permeate Flow: | 1600 GPD | Effective Membrane Area: | 90 Square Feet |
| Stable Salt Rejection: | 99.6% | Feed Spacer Width: | 28 Mil |
| Maximum Working Pressure: | 1200psi | Maximum Pressure Drop: | 15psi |
| Maximum Feed Water SDI:: | 5 | Port: | Qingdao, Shanghai, Tianjin |
| High Light: | 4040 ro membrane element,Seawater Desalination ro membrane element,Brackish Water Treatment reverse osmosis cell |
||
Product Description
Advanced 4040 RO Membrane Cell for Seawater Desalination and Brackish Water Treatment
Company Profile
Product Description
Brief Introduction of 4040 RO Membrane Element
ME-4040FR Reverse Osmosis Membrane Element is a type of fouling resistant membrane manufactured by our company. With good quality and competitive price, ME-4040FR membrane module is ideal replacement international famous brands.
Try before buy. Free sample is available for your test. The clients can place trial order for 3~6 months test. We are confident of the performance of ME-4040 membrane elements.
Product Structure

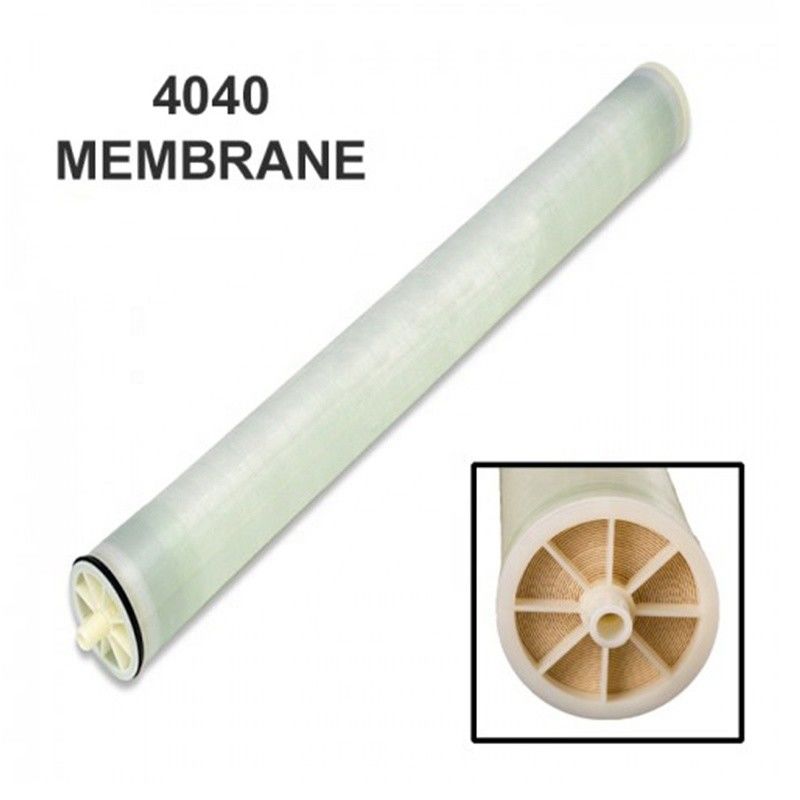

4040 RO Fouling Resistant Reverse Osmosis Element Structure
4040 RO membrane Element is mainly consisting of membrane housing--a kind of pressure vessel made of FRP or stainless steel; spiral would membrane film, connector, seals and the like.
Specification
|
Key Performance
|
Model
|
ME-4040FR
|
ME-4040HR
|
ME-4040SW
|
|
|
Permeate Flow Rate
|
2,200 GPD (8.3 m³/d)
|
2,200 GPD (8.3 m³/d)
|
1,600 GPD (6.1m³/d)
|
|
|
Stable Salt Rejection
|
90 square feet (8.4 ㎡)
|
90 square feet (8.4 ㎡)
|
95 square feet (8.8 ㎡)
|
|
|
Effective Membrane Area
|
90 square feet (8.4 ㎡)
|
90 square feet (8.4 ㎡)
|
95 square feet (8.8 ㎡)
|
|
|
Feed Spacer Width
|
34mil
|
28mil
|
28mil
|
|
Test Condition
|
Test Pressure
|
225psi (1.55MPa)
|
225psi (1.55MPa)
|
800psi (5.52MPa)
|
|
|
Test Solution
|
2000mg/L NaCl
|
2000mg/L NaCl
|
32000mg/L NaCl
|
|
|
Test Temperature
|
25℃ (77℉)
|
25℃ (77℉)
|
25℃ (77℉)
|
|
|
PH
|
7.0±0.5
|
7.0±0.5
|
8
|
|
|
Recovery Rate
|
15%
|
15%
|
8%
|
|
Operation Condition
|
Max. Operation Pressure
|
600psi (4.14MPa)
|
600psi (4.14MPa)
|
1200psi (8.28MPa)
|
|
|
Max. Feed Rate
|
16 GPM ( 3.6m³/h )
|
16 GPM ( 3.6m³/h )
|
16 GPM ( 3.6m³/h )
|
|
|
Max. Feed Water Temperature
|
45℃(113℉
|
45℃(113℉
|
45℃(113℉
|
|
|
Max. Feed Water SDI
|
5
|
5
|
5
|
|
|
Free Chlorine
|
＜0.1mg/L
|
＜0.1mg/L
|
＜0.1mg/L
|
|
|
Max. Pressure Drop
|
15psi (0.1MPa) for single membrane module
|
15psi (0.1MPa) for single membrane module
|
15psi (0.1MPa) for single membrane module
|
|
|
Cleaning PH
|
1~13
|
1~13
|
1~13
|
|
|
Operation PH
|
2~11
|
2~11
|
2~11
|
Main Application
* Drinking and potable water purification
* Seawater Desalination
* Brackish Water Desalination
* Boiler Replenishment Water Treatment
* Water Reuse
* Concentration of value-added solution in beverage and pharmaceutical
* Seawater Desalination
* Brackish Water Desalination
* Boiler Replenishment Water Treatment
* Water Reuse
* Concentration of value-added solution in beverage and pharmaceutical
Packing & Delivery
Generally, package of ME-4040 membrane elements are packed in paper box or cartoon for container shippment
FAQ
1. HOW TO SELECT MEMBRANE TYPE?
i) Check the model and size of your membrane module to be replaced;
ii)Consult our engineer for free.
2. DO YOU OFFER OEM or ODM?
i) Check the model and size of your membrane module to be replaced;
ii)Consult our engineer for free.
2. DO YOU OFFER OEM or ODM?
Yes, we are a manufacturer offer customized design and manufacture.
3. DO YOU HAVE MINIMAL ORDER QUANTITY?
Yes. Typically MOQ is 1 pcs.
4. HOW ABOUT THE CERTIFICATES?
3. DO YOU HAVE MINIMAL ORDER QUANTITY?
Yes. Typically MOQ is 1 pcs.
4. HOW ABOUT THE CERTIFICATES?
Quality certificate and test report are available.
5. HOW ABOUT YOUR AFTER-SALE SERVICE?
5. HOW ABOUT YOUR AFTER-SALE SERVICE?
7x24 hot line services.
