Water Treatment Bag Type Water Filters SUS304 For Landfill Leachate Treatment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | QRZ |
| Model Number: | QRZ-DF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $100.00 - $3,000.00/sets |
| Packaging Details: | Regular packaging |
| Delivery Time: | 5-8 weeks |
| Supply Ability: | 100 units/day |
|
Detail Information |
|||
| Product Name: | Bag Type Water Filter | Material: | SUS304 |
|---|---|---|---|
| Application: | Water Treatment | MOQ: | 5 |
| Color: | Silver | Port: | Qingdao, Shanghai, Tianjin |
| High Light: | Bag Type Water Filters SUS304,Water Treatment Bag Type Water Filters,Landfill Leachate Treatment Bag Type Water Filters |
||
Product Description

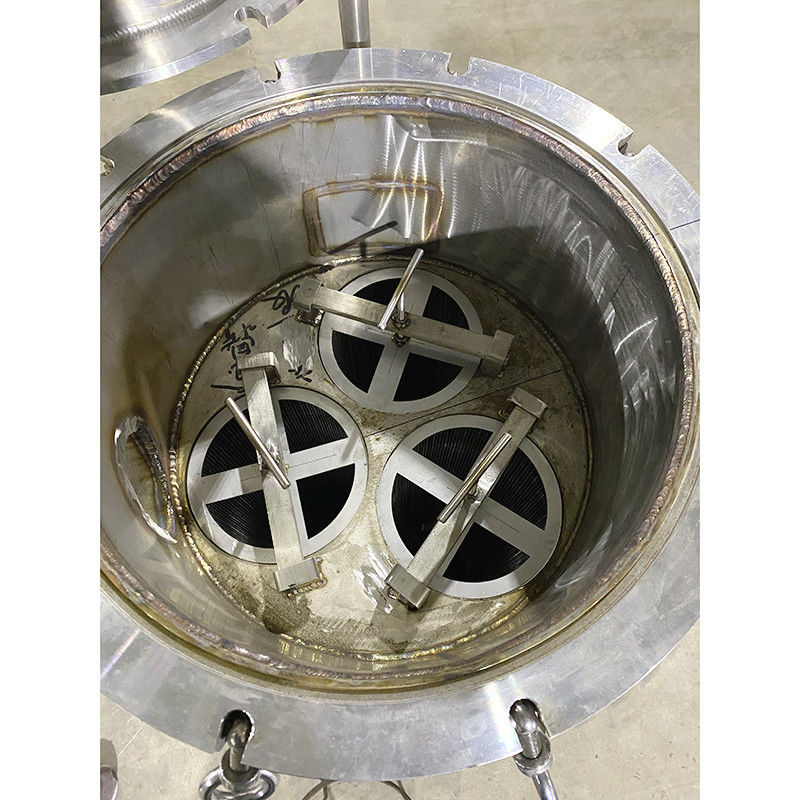

Bag filter is a kind of pressure type filter, filter cylinder, cylinder lid, and main quick opening mechanism, stainless steel filter bag to strengthen network main parts, such as the filtrate by filter shell side inlet tube into the filter bag, filter bag itself is a device in strengthening a basket with netting on top, liquid penetrant over fineness required for grades of filter bag which can obtain qualified filtrate, impurity particles blocked by the filter bag. The machine is very convenient to change the filter bag, filtering basically no material consumption.
Packaging: Wood Box
Shipping: Land, Sea
|
Model |
Flux (t/h) |
Inlet OD |
Size (mm) |
Bag No. |
Bag Size |
Filtration Area (m2) |
|
QRZ-DF1-1F |
20 |
DN50 |
Φ219*410 |
1 |
Φ180*410 |
0.23 |
|
QRZ-DF1-2F |
40 |
DN65 |
Φ219*810 |
1 |
Φ180*810 |
0.46 |
|
QRZ-DF2-2F |
50~80 |
DN80 |
Φ400*810 |
2 |
Φ180*810 |
0.92 |
|
QRZ-DF2-3F |
120 |
DN100 |
Φ500*810 |
3 |
Φ180*810 |
1.38 |
|
QRZ-DF2-4F1 |
140 |
DN100 |
Φ550*810 |
4 |
Φ180*810 |
1.80 |
|
QRZ-DF2-4F2 |
150 |
DN125 |
Φ600*810 |
4 |
Φ180*810 |
1.80 |
|
QRZ-DF2-5F |
160 |
DN125 |
Φ650*810 |
5 |
Φ180*810 |
1.84 |
|
QRZ-DF2-6F |
200 |
DN150 |
Φ750*810 |
6 |
Φ180*810 |
2.30 |
|
QRZ-DF2-8F |
220 |
DN150 |
Φ800*810 |
8 |
Φ180*810 |
2.50 |
|
QRZ-DF2-9F |
240 |
DN200 |
Φ850*810 |
9 |
Φ180*810 |
2.76 |
