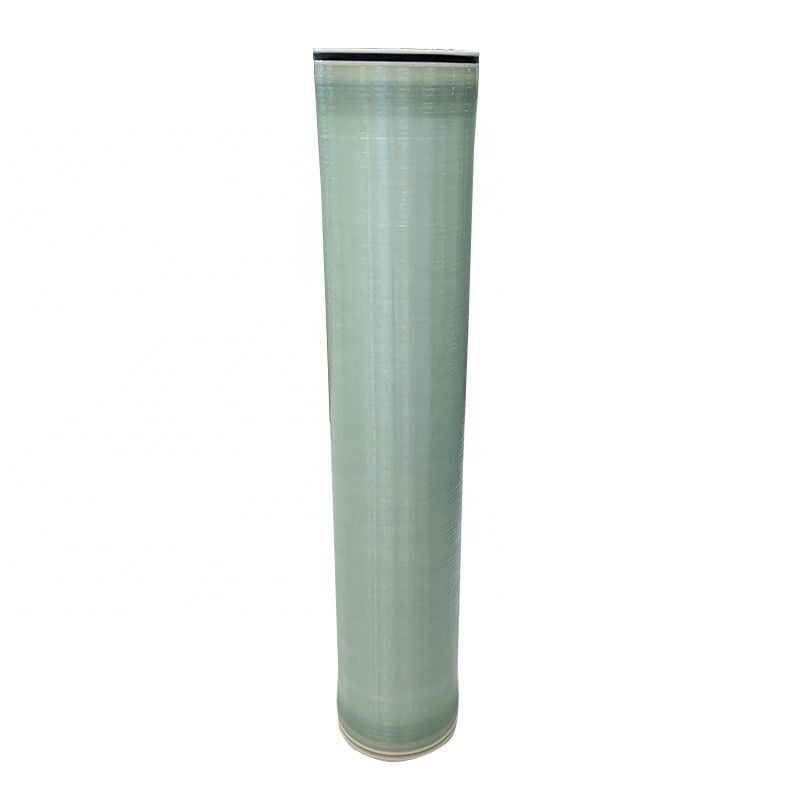

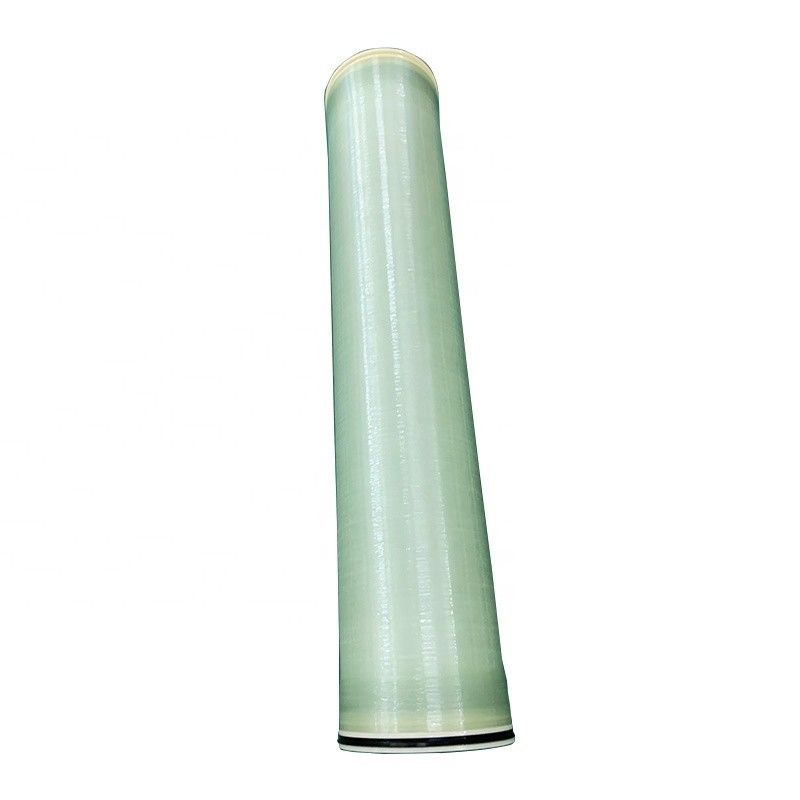

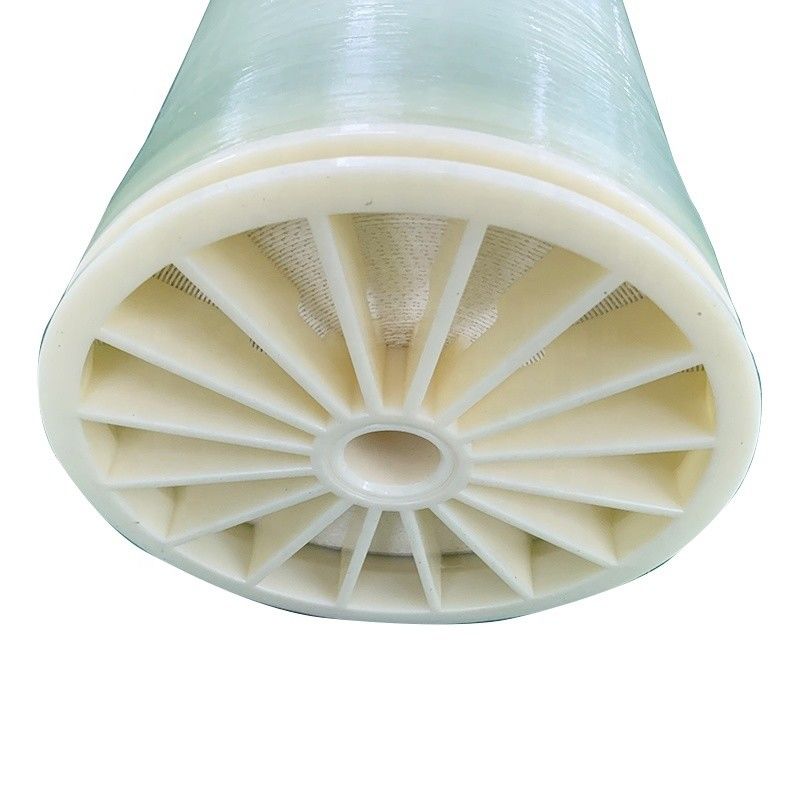

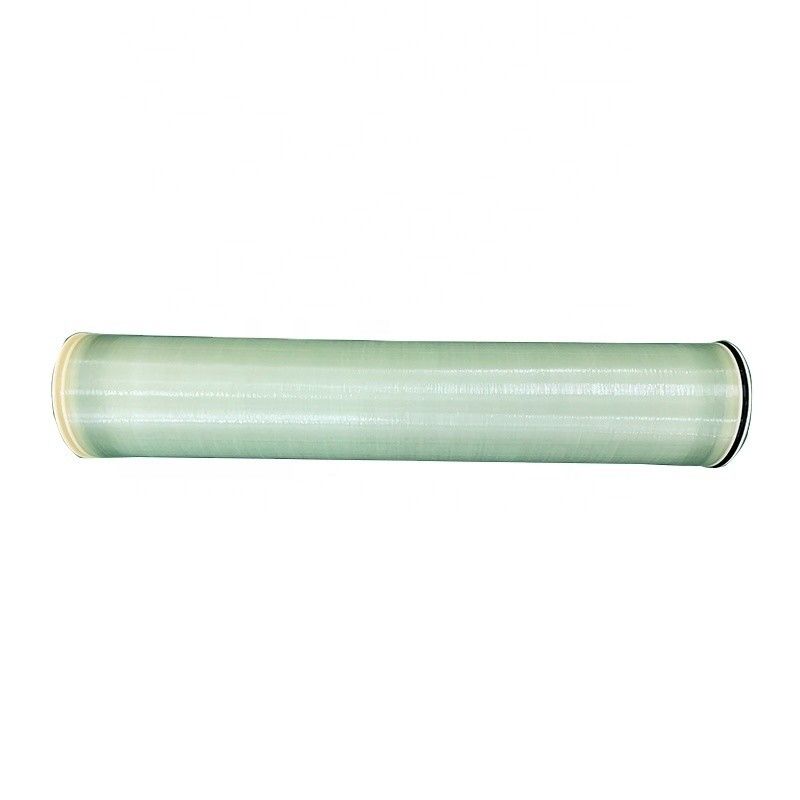

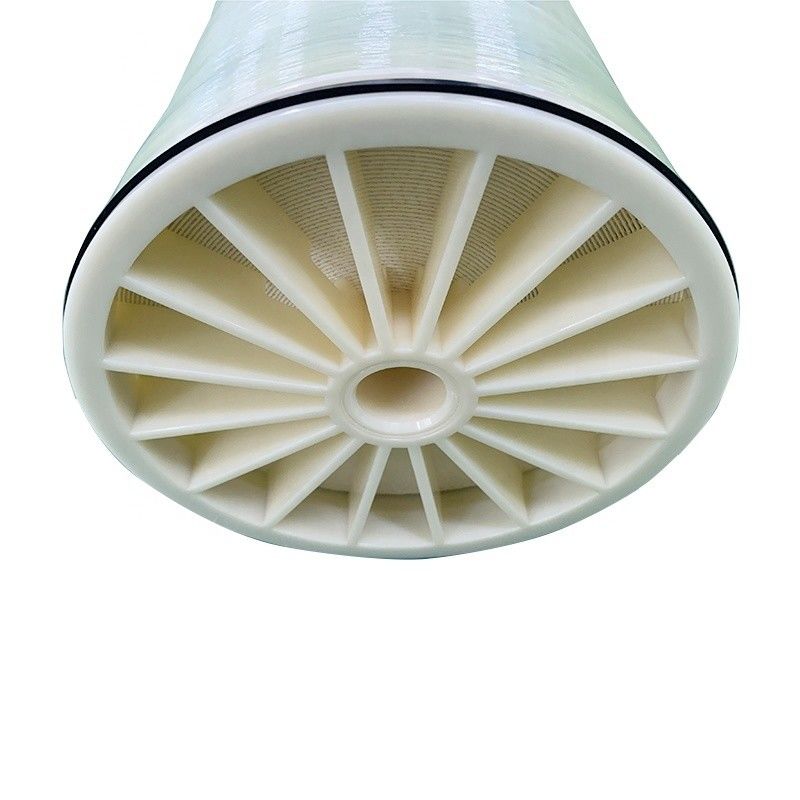

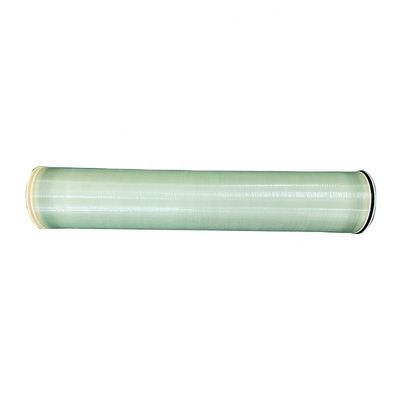

Brackish Water Industrial RO Membrane Element 8040 Max Working Pressure 600psi
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | QRZ |
| Model Number: | QRZ-8040HR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $270.00/pieces 10-99 pieces |
| Packaging Details: | Regular packaging |
| Delivery Time: | 5-8 weeks |
| Supply Ability: | 100 units/day |
|
Detail Information |
|||
| Product Name: | 8040 RO Membrane Module | Module Diameter: | 8 Inch |
|---|---|---|---|
| Module Length: | 40 Feet | Permeate Flow: | 10100 GPD |
| Effective Membrane Area: | 400 Square Feet | Stable Salt Rejection: | 99.6% |
| Feed Spacer Width: | 34 /28 Mil | Maximum Working Pressure: | 600psi |
| Maximum Pressure Drop: | 15psi | OEM: | Available |
| High Light: | Brackish Water RO Membrane Element,RO Membrane Element 600psi,Industrial RO Membrane Element 8040 |
||
Product Description
Brackish Water Industrial RO Membrane Element 8040 with 34/28 mil Feed Spacer Width
* Recycling Water
Company Profile
Beijing Qinrunze Environmental Protection Technology Co.,Ltd (QRZ), established in 2009, is a integrated solution provider in the field of water treatment, covering landfill leachate treatment, food waste treatment, industrial waste water treatment, sanitary waste treatment, mine waste water treatment. Business scope of QRZ encompasses the whole process of water treatment, ranging from engineering design, equipment manufacture, installation & commissioning, project contracting to entrusted operation. QRZ is capable of producing Membrane Bioreactor (MBR), Ultrafiltration (UF), Nanofiltration (NF), Reverse Osmosis (RO), Disc Tube Reverse Osmosis (DTRO), A/O Unit and the associated equipment, unit and accessories.
Product Description
ME-8040 Industrial RO Membrane Module Introduction
ME-8040HR Reverse Osmosis Membrane Module is a type of high pressure membrane manufactured by our company. With good quality and competitive price, ME-8040HR membrane module is ideal replacement international famous brands.
Try before buy. Free sample is available for your test. The clients can place trial order for 3~6 months test. We are confident of the performance of ME-8040FR membrane Module .
Product Paramenters
|
Key Performance
|
Model
|
ME-8040HR
|
|
|
Permeate Flow Rate
|
10,500 GPD (39.7 m³/d)
|
|
|
Stable Salt Rejection
|
99.6%
|
|
|
Effective Membrane Area
|
400 square feet (37.2 m2)
|
|
|
Feed Spacer Width
|
34mil
|
|
Test Condition
|
Test Pressure
|
225psi (1.55MPa)
|
|
|
Test Solution
|
2000mg/L NaCl
|
|
|
Test Temperature
|
25℃ (77℉
|
|
|
PH
|
7.0±0.5
|
|
|
Recovery Rate
|
15%
|
|
Operation Condition
|
Max. Operation Pressure
|
600psi (4.14MPa)
|
|
|
Max. Feed Rate
|
75 GPM (17 m³/h)
|
|
|
Max. Feed Water Temperature
|
45℃(113℉
|
|
|
Max. Feed Water SDI
|
5
|
|
|
Free Chlorine
|
＜0.1mg/L
|
|
|
Max. Pressure Drop
|
15psi (0.1MPa) for single membrane module
|
|
|
Cleaning PH
|
1~13
|
|
|
Operation PH
|
2~11
|
Main Application
* Waste Water Treatment
* Desalination Water
Packing & Delivery
Package
Paper Carton
Shipment
Sea, land, Air
FAQ
1. HOW TO SELECT MEMBRANE TYPE
i) Check the model and size of your membrane module to be replaced;
ii)Consult our engineer for free
2. DO YOU OFFER OEM or ODM?
Yes, we offer customized design and manufacture.
3. DO YOU HAVE MINIMAL ORDER QUANTITY?
Yes. Typically MOQ is 1 pcs.
Yes. Typically MOQ is 1 pcs.
4. HOW ABOUT THE CERTIFICATES
Quality certificate and test report are available.
5. HOW ABOUT YOUR AFTER-SALE SERVICE?
7x24 hot line services.
